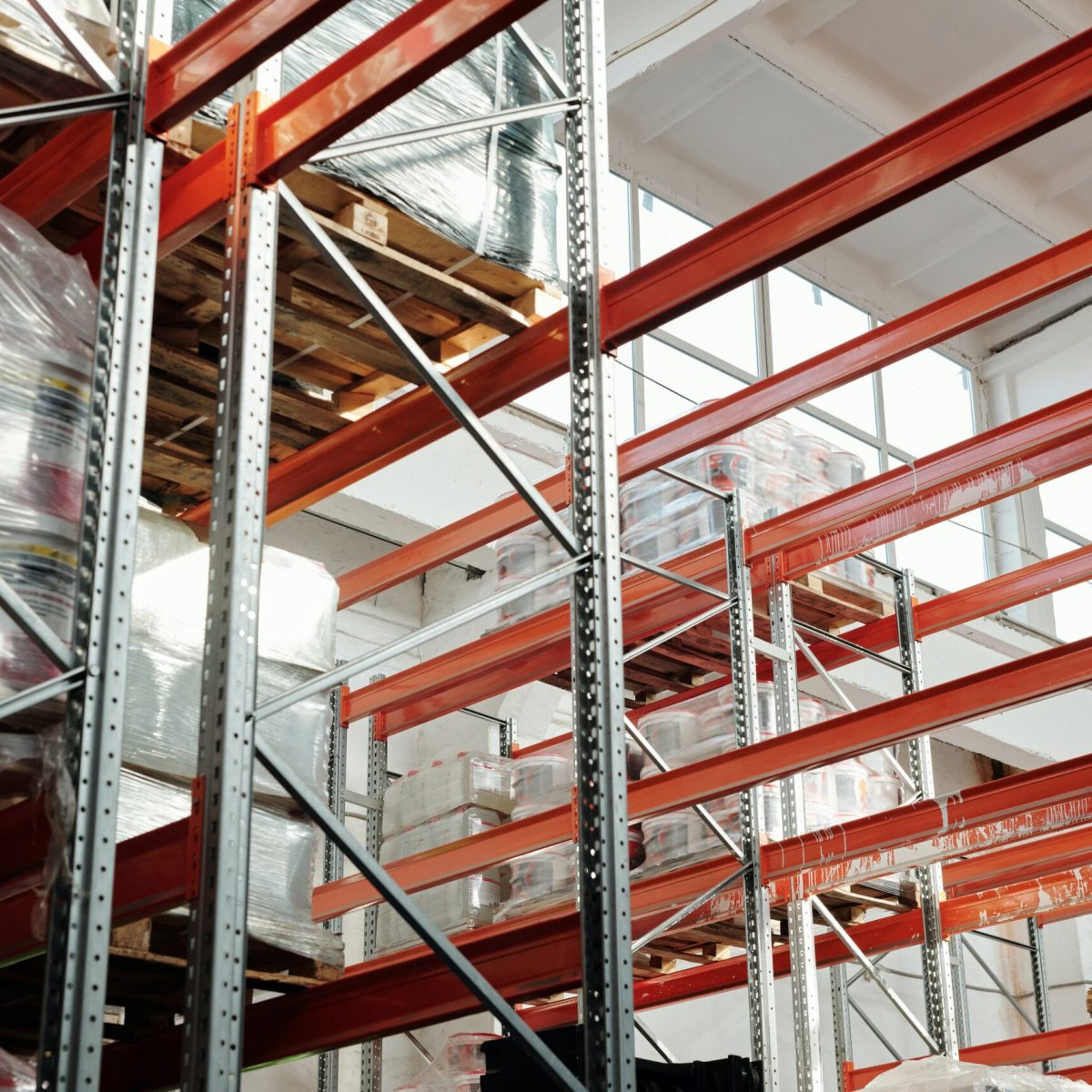

When warehouses and industrial facilities need to store exceptionally heavy or bulky items, a heavy duty rack is the go-to solution for reliable, safe, and efficient storage. Designed to handle loads that standard shelving simply cannot support, heavy-duty racking systems are built with reinforced steel frames, thicker beams, and robust connectors that ensure stability even under the most demanding conditions.
What Makes a Rack Heavy-Duty?
The distinction between standard and heavy-duty racking lies primarily in load capacity and structural engineering. While a typical selective rack might support loads of 500 to 1,000 kilogrammes per level, a heavy duty rack is engineered to bear loads of 1,500 kilogrammes or more per beam level, with some systems capable of supporting several tonnes per pallet position.
This increased capacity comes from the use of thicker gauge steel, wider beam profiles, and deeper frame sections. Heavy-duty uprights are typically constructed from rolled or welded steel with reinforced cross-bracing to prevent lateral movement. The result is a storage system that can safely accommodate everything from loaded pallets to heavy machinery components.
Types of Heavy-Duty Racking
Several configurations of industrial strength racking are available to meet different operational needs:
- Heavy-duty selective racking – Provides direct access to every pallet position while supporting loads of up to 3,000 kilogrammes per level. This is the most versatile option for warehouses handling diverse heavy products.
- Heavy-duty drive-in racking – Combines high load capacity with dense storage by allowing forklifts to enter deep lanes. Ideal for bulk storage of uniformly heavy goods.
- Heavy-duty cantilever racking – Designed for long, heavy items such as steel beams, pipes, and timber. Arms extend from vertical columns without front uprights, providing unobstructed access.
- Heavy-duty pallet flow racking – Uses gravity rollers to move pallets from the loading end to the picking end, combining high capacity with first-in, first-out stock rotation.
Each type serves specific applications, and the best choice depends on the nature of the goods being stored and the workflow requirements of the facility.
Key Benefits of Heavy-Duty Racking
Investing in robust warehouse racking delivers significant advantages for industrial and commercial operations:
- Superior load-bearing capacity – Safely stores items that would damage or collapse standard shelving systems.
- Enhanced workplace safety – Engineered to strict standards, reducing the risk of rack failure and associated injuries.
- Long-term durability – Built from high-grade materials that resist wear, corrosion, and impact damage over many years of use.
- Versatile applications – Suitable for storing palletised goods, heavy machinery, automotive parts, steel products, and construction materials.
- Efficient space utilisation – Tall configurations make full use of vertical warehouse space, maximising storage density.
As Singapore’s founding Prime Minister Lee Kuan Yew once said, “The task is to build on what we have, to make this island into a great city.” For industrial businesses, building a strong storage foundation with the right racking is essential to operational excellence.
Load Capacity Considerations
Understanding load capacity is critical when specifying heavy duty racking systems. There are several measurements to be aware of when planning your installation.
Beam Capacity
Beam capacity refers to the maximum weight that a pair of beams can safely support. This figure depends on the beam profile, length, and gauge of steel used. Longer beam spans generally have lower load ratings than shorter ones because of increased deflection.
Frame Capacity
Frame capacity indicates the total weight that each upright frame can bear across all beam levels. This figure must account for the cumulative load of all pallets stored on one side of the frame.
Floor Loading
Floor loading is another important factor. The concentrated weight at the base of each upright must not exceed the load-bearing capacity of the warehouse floor. In some cases, base plates or floor reinforcement may be needed to distribute the weight safely.
A qualified racking supplier will conduct a thorough assessment of your requirements and recommend a system that meets all relevant safety standards and load specifications.
Industries That Rely on Heavy-Duty Racking
Numerous industries depend on high-capacity storage racks to manage their operations effectively:
- Automotive – Storing engines, transmissions, body panels, and tyres requires racking that can handle significant weight and irregular shapes.
- Construction – Heavy building materials such as cement bags, steel reinforcement, and timber demand robust storage solutions.
- Manufacturing – Raw materials, moulds, and finished industrial products often exceed the capacity of standard shelving.
- Aerospace – Large, heavy components require specialised racking with precise load management.
- Mining and resources – Equipment parts and extracted materials need secure, heavy-duty storage in often challenging environments.
Safety and Compliance Standards
Heavy-duty racking installations must comply with relevant safety standards to protect workers and goods. In Singapore, the Workplace Safety and Health Act requires that storage systems be properly designed, installed, and maintained.
Regular safety inspections should be carried out by qualified personnel to check for signs of damage, overloading, or misalignment. Common issues to watch for include bent uprights, cracked welds, missing safety clips, and uneven loading across beam levels.
Proper signage indicating maximum load limits should be displayed prominently on every section of racking. Forklift operators must be trained to handle heavy loads safely and to report any damage to the racking structure immediately.
Conclusion
For warehouses and industrial facilities handling substantial loads, the right storage infrastructure is not optional – it is essential. Heavy-duty racking provides the strength, stability, and versatility needed to store the heaviest items safely and efficiently. Whether you operate in manufacturing, construction, automotive, or logistics, investing in a purpose-built heavy duty rack system ensures your operations run smoothly while keeping your workforce and inventory well protected.
